Hydro Turbine 3D Scan

Hydro Turbine 3D Scan

Hydro Power Stations are a very clean cheap and efficient way of producing green renewable electrical power.

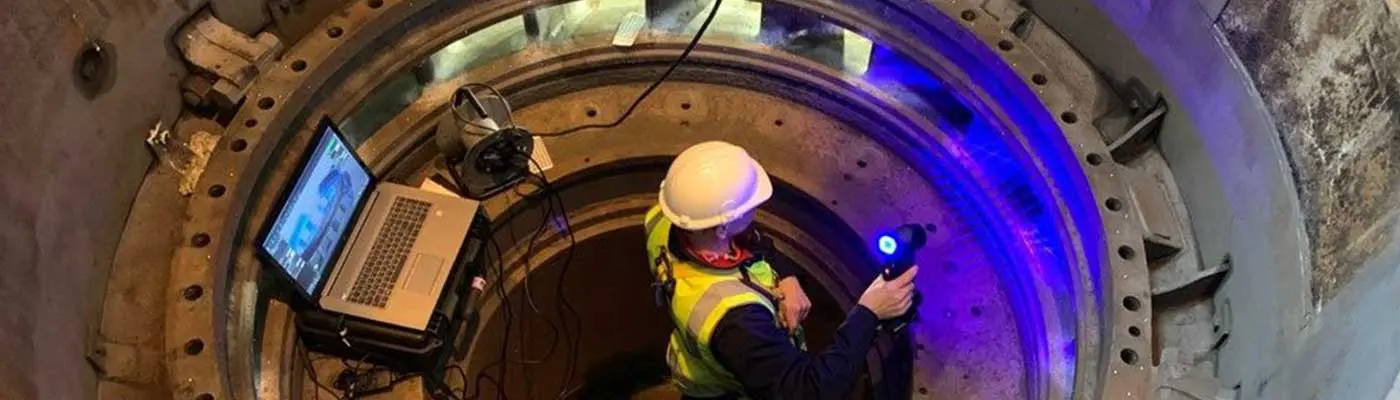

Above is one of our Metrology Technicians using a Faro 3D scanner to scan the spiral casing and draft tube on a water turbine at a Hydro Electric Power Station in Scotland.

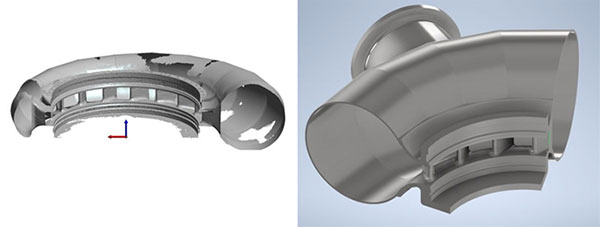

We use the data to identify the amount of wear that is present within the turbine unit. We also use the data from the scanner to produce accurate engineering drawings.

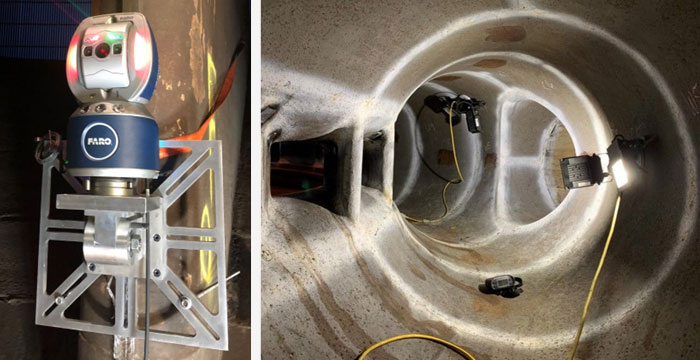

Using a Faro scanner to map the inside of the spiral chamber to produce an engineering drawing.
