Following works and checks were carried out.

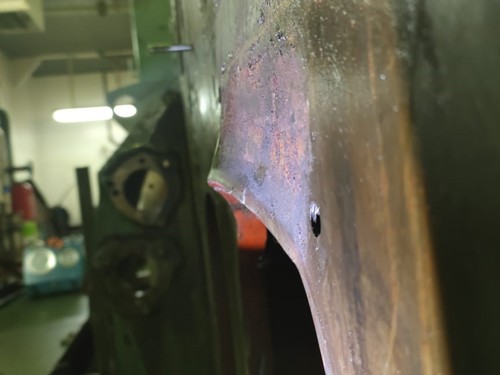

• Inspection of the damaged area of the casing
• Take sizes and prepare templet.
• With the use of template, prepare steel inserts leaving green material for final fitment.

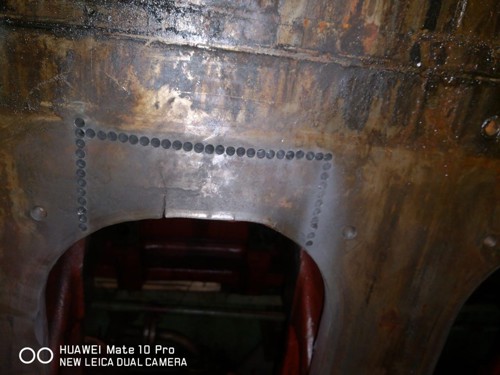

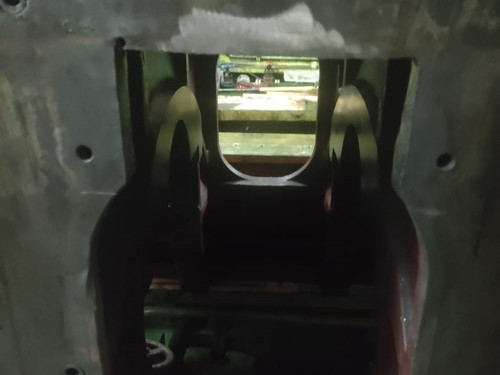

• Cut away damaged area by means of drilling & grinding (approx. 180mm x 80mm.)
• Grind the steel insert plate to suit.

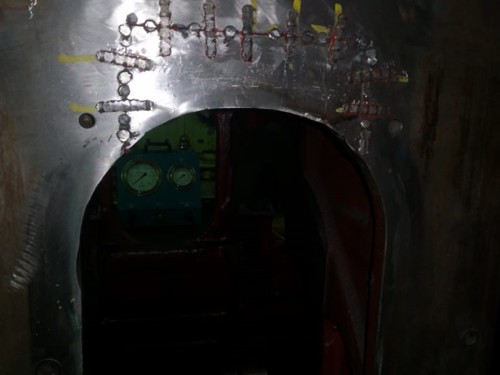

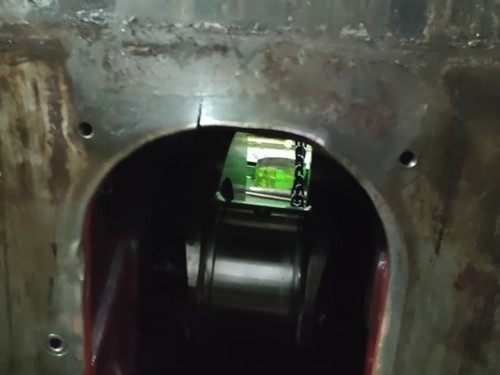

• Installation of make-up plate using the Metalock process.

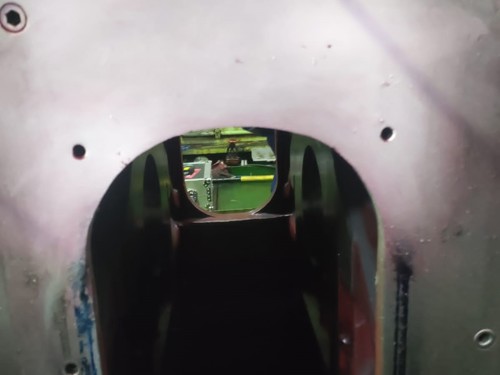

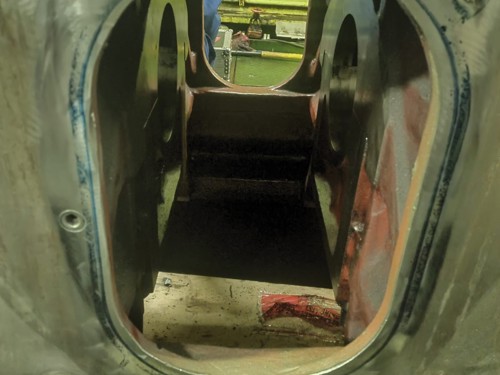

• Grinding of surfaces and carry out MPI after the repair

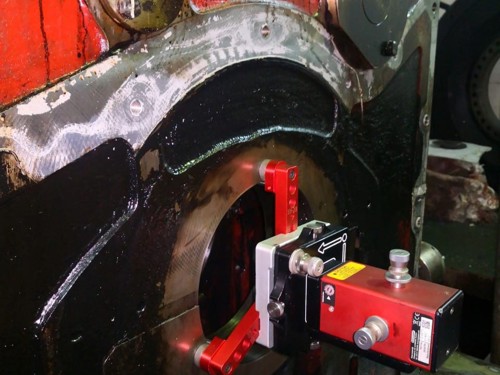

• Carry out centerline check of main bearing bores using Easy Laser.
• Measuring of all bore sizes
Metalock Engineering is an established mechanical equipment repair company with proven expertise in quality repairs, maintenance, bespoke modifications and equipment upgrades around the world.
