Welding Repair and Modification of a Hydraulic Press from 2000 t to 3000 t Pressing Force

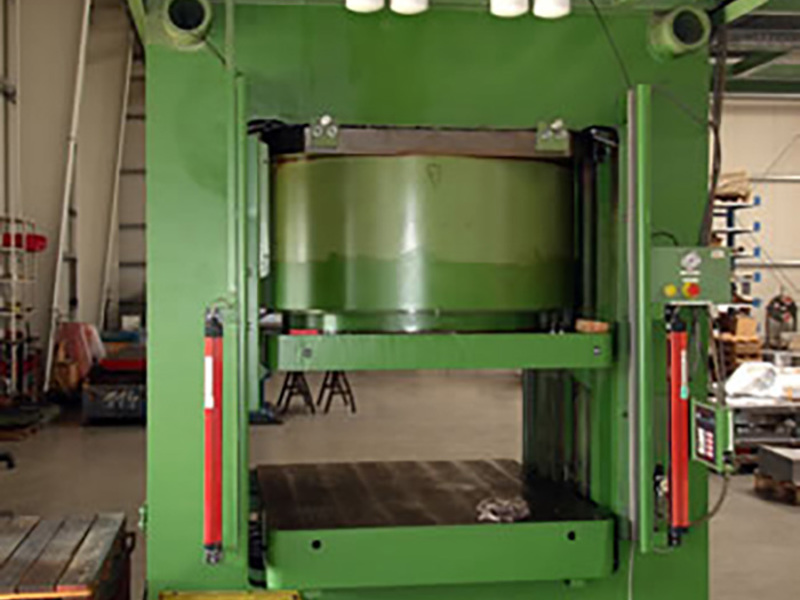

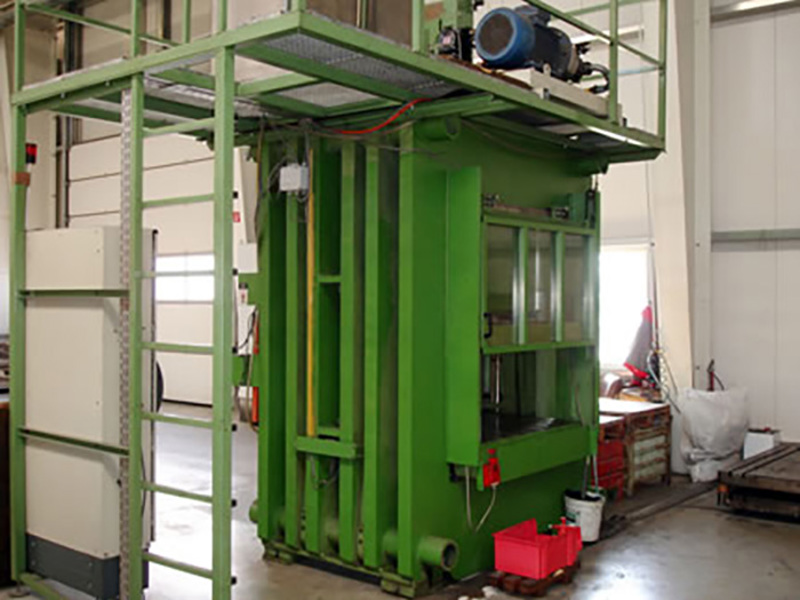

Original condition of the press

Original condition of the press

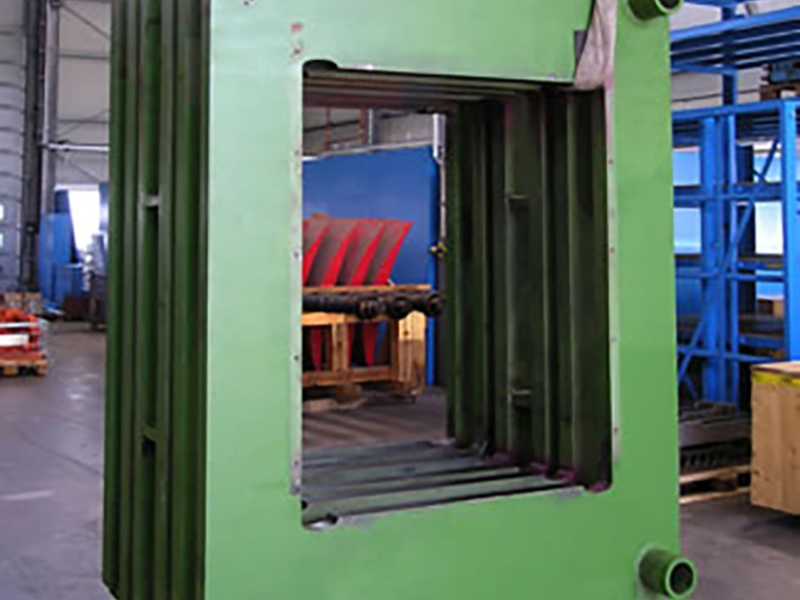

Completely disassembled press

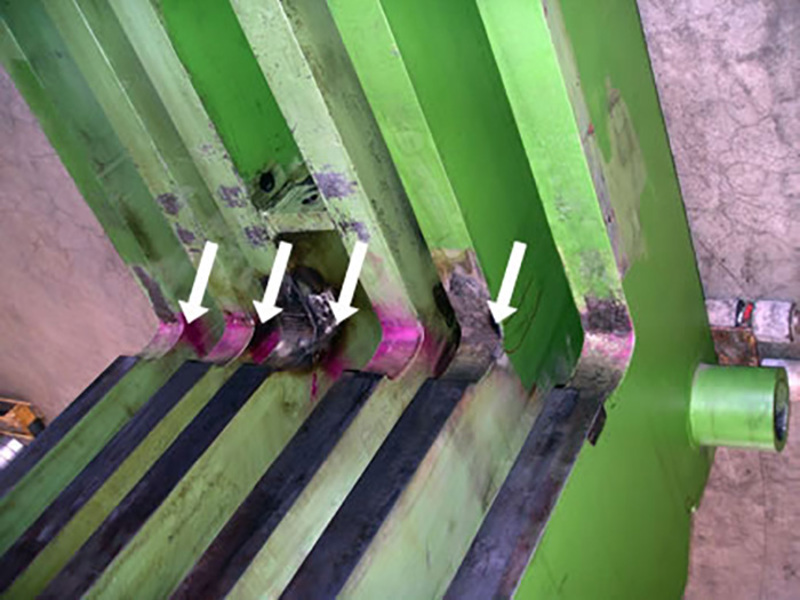

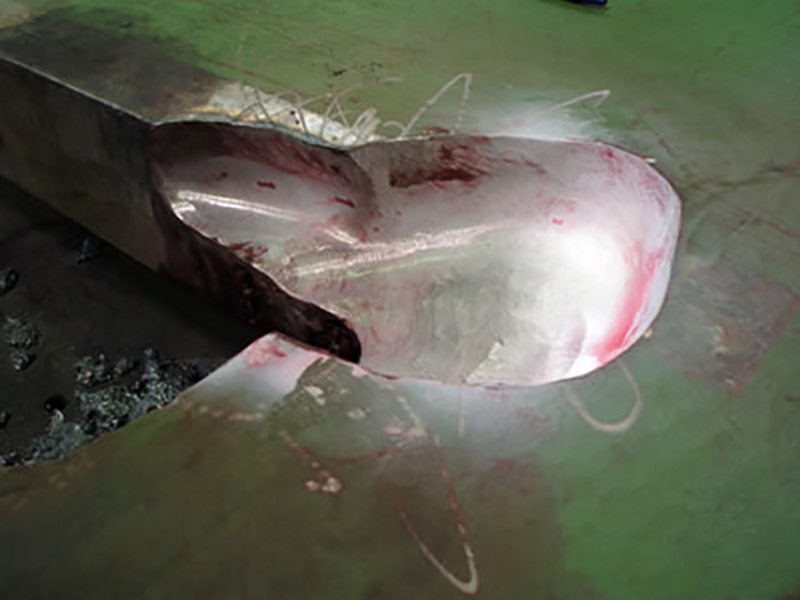

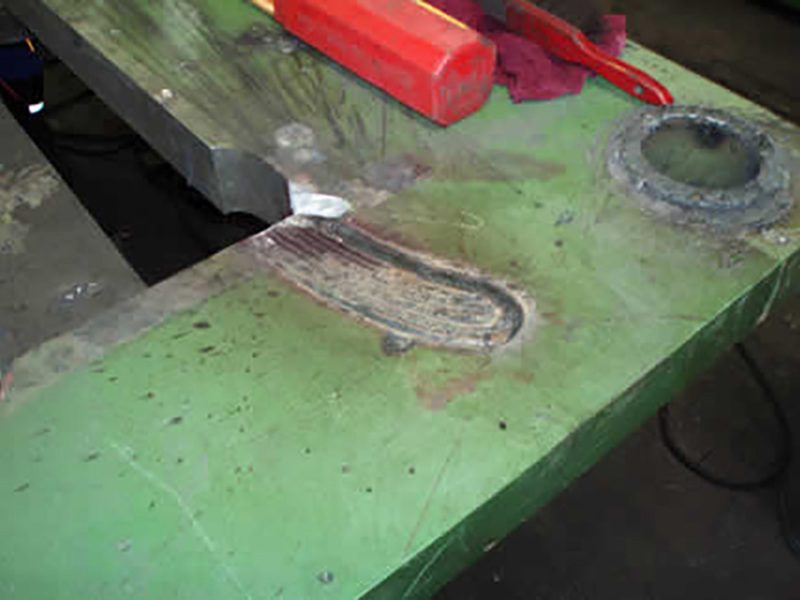

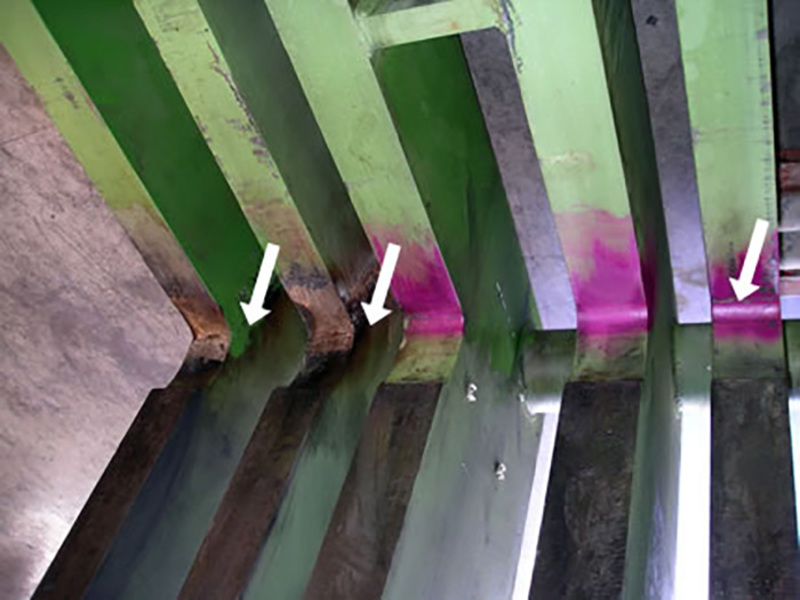

Crack in the press body

Crack in the press body

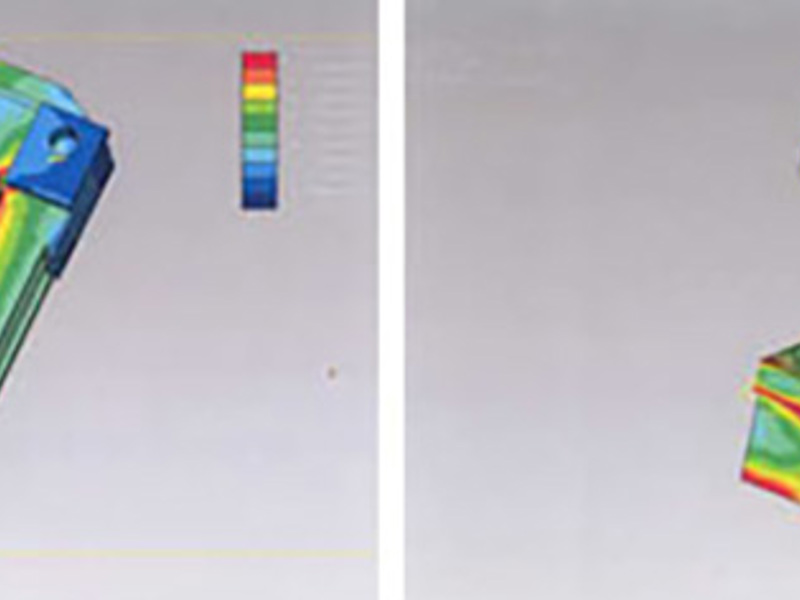

Preparation of a FE analysis for calculating the modified press body’s loading capacity

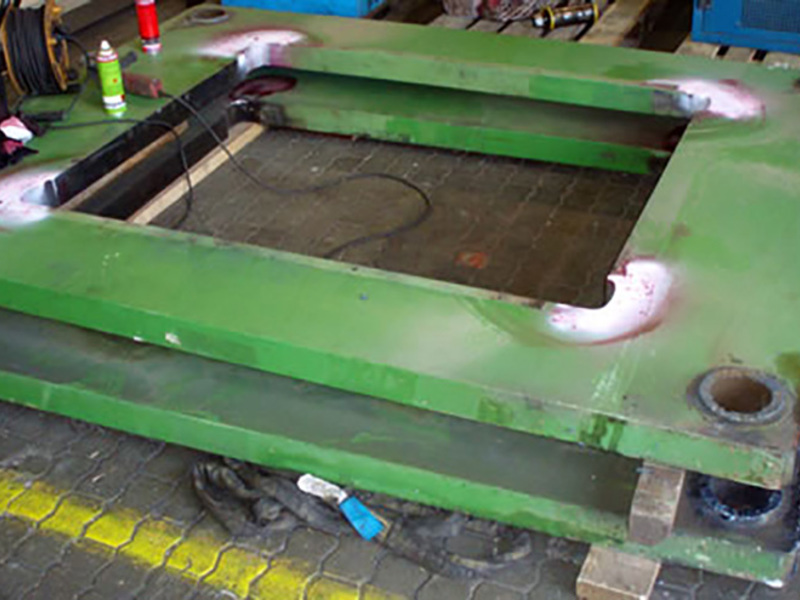

Segments of the completely disassembled press body

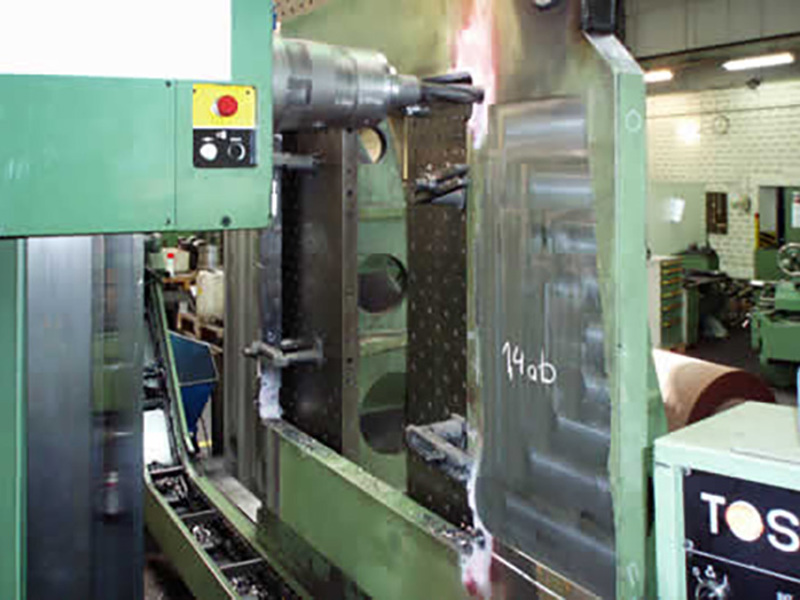

Mechanical machining of the individual segments

Mechanical machining of the individual segments

Mechanical machining of the individual segments

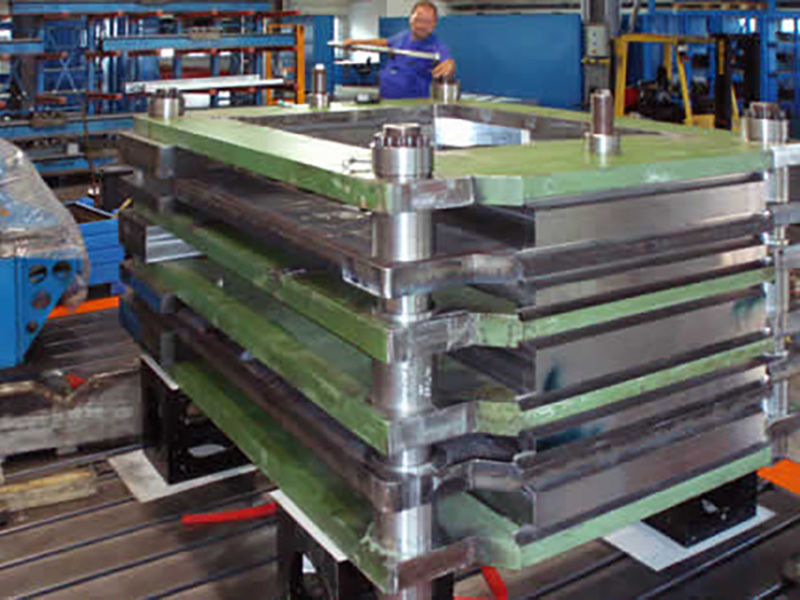

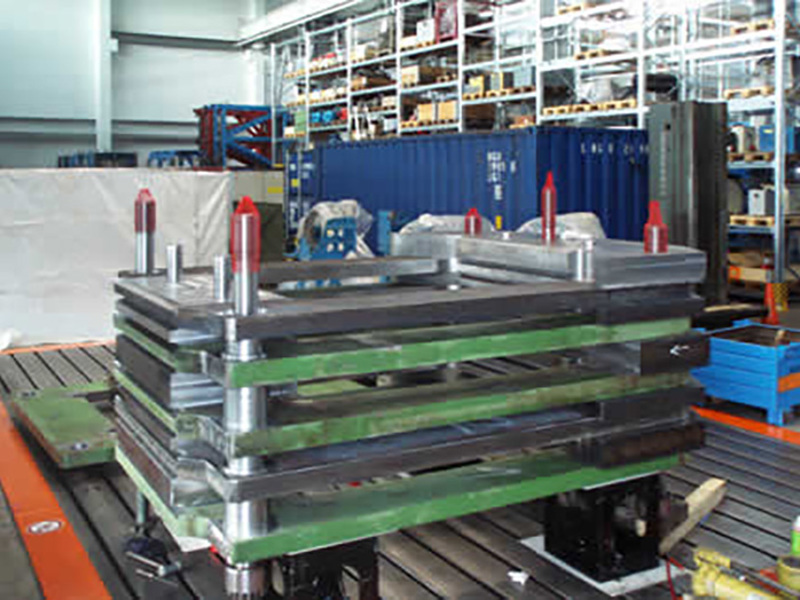

Assembly of the press body enhanced with various anchor plates and six tension rods

Assembly of the press body enhanced with various anchor plates and six tension rods

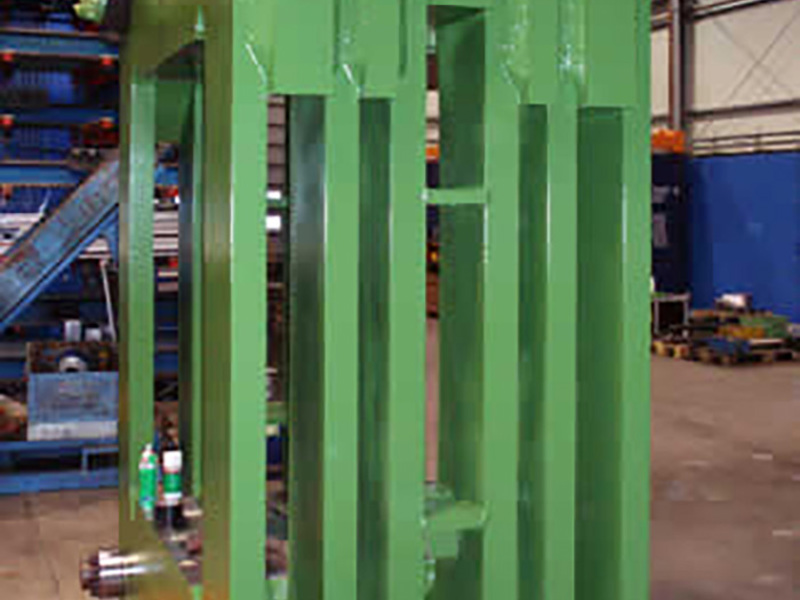

Finished and assembled press body

Finished and assembled press body
