1 September 2026

Gas turbine thrust collar repaired in-situ

Our customer calls with an urgent request for site support.

The turbine is at a stand still and an urgent repair is required before it can be returned to normal service.

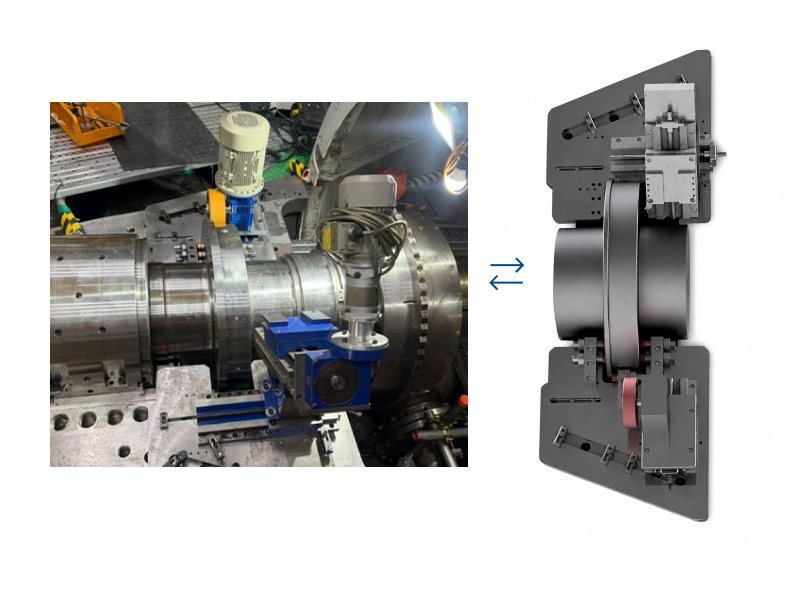

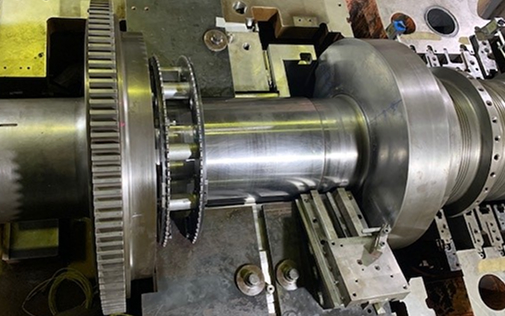

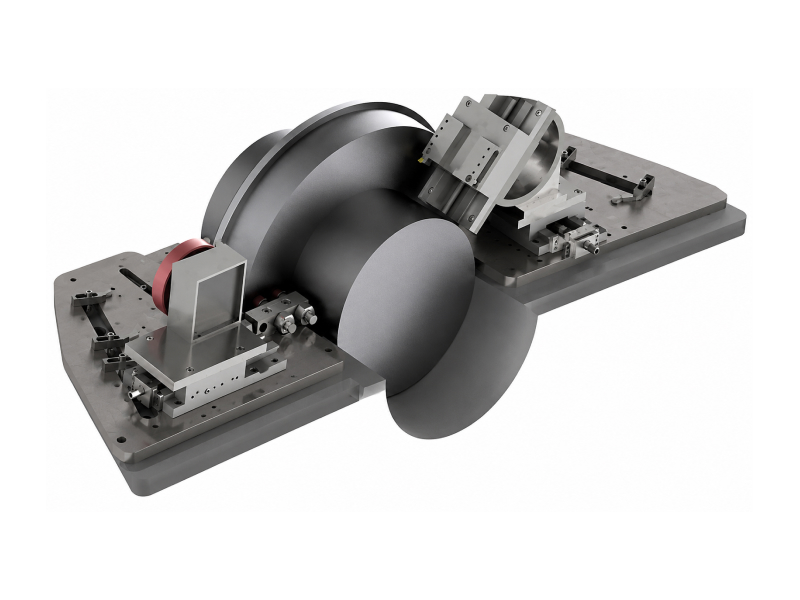

Real world implementation & 3D CAD Design

Metalock Scope of work:

  1. MPI using Magnaflux

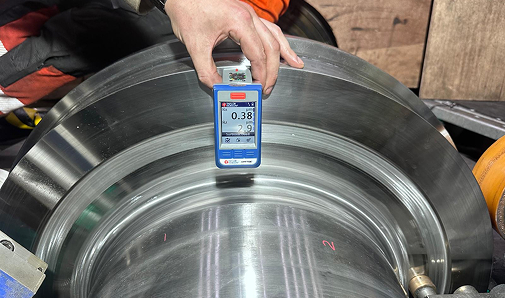

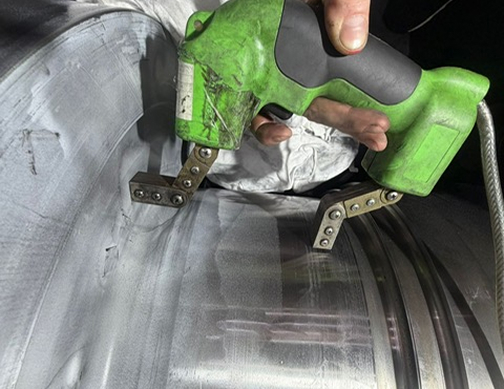

  2. Hardness testing using Equiptip
  3. Machining and Superfinishing of the collar surface and Rotor journal as required.
  4. Reprofiling of fillet radius to avoid stress points.
  5. Run-out checking and full reporting of pre/post machining actions

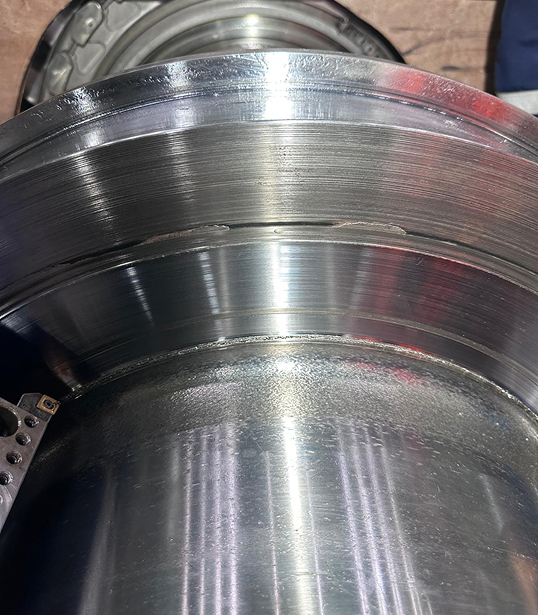

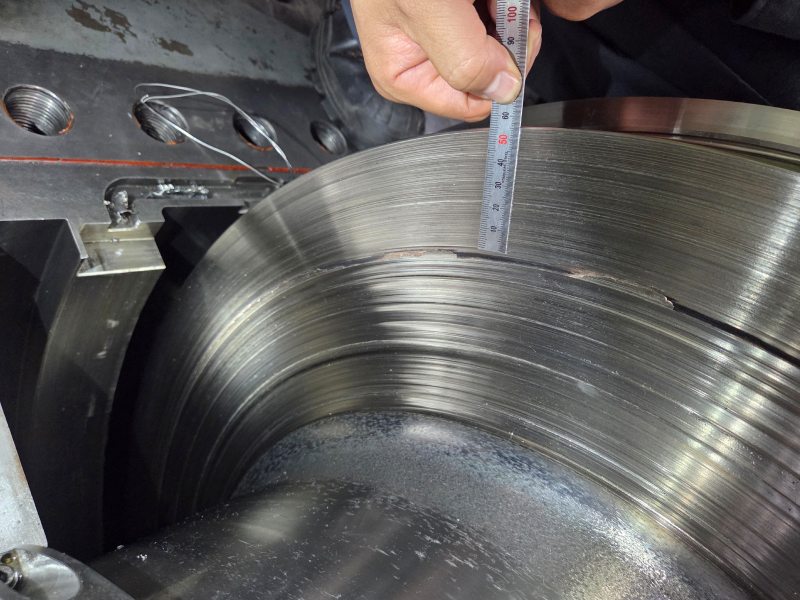

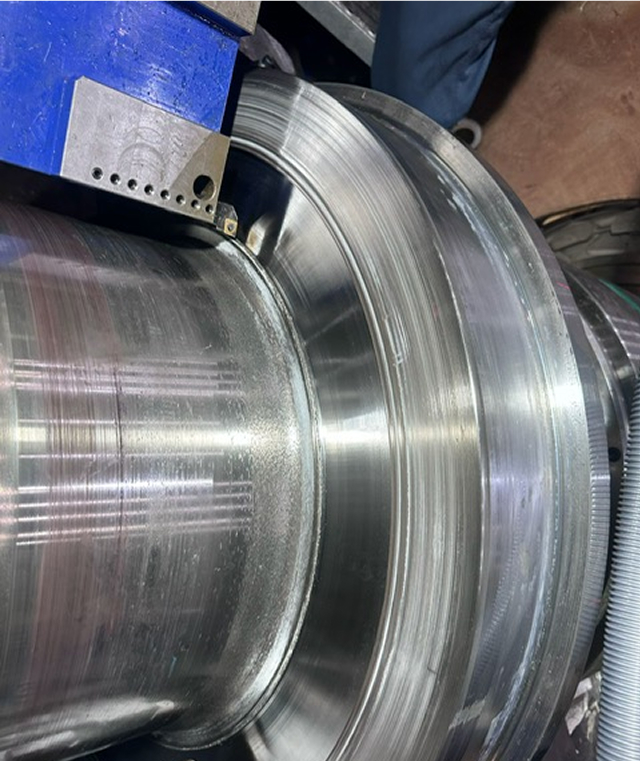

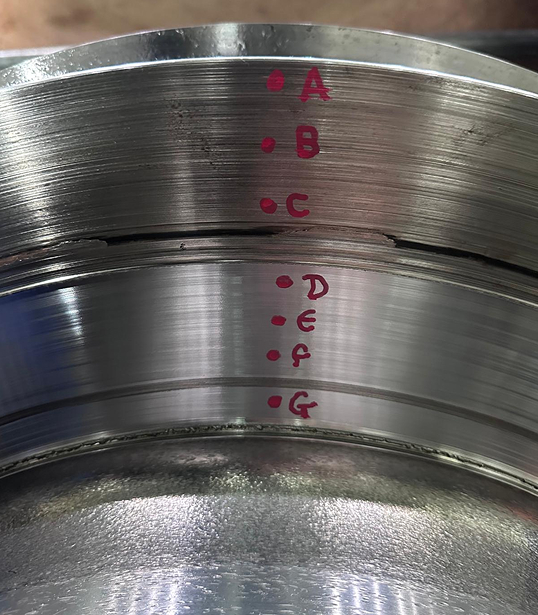

Thrust Face Damage

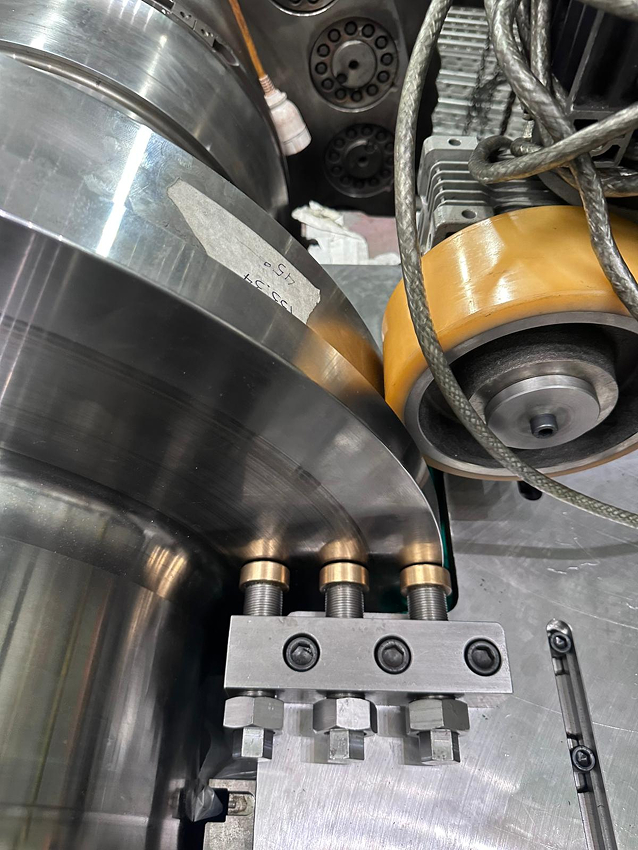

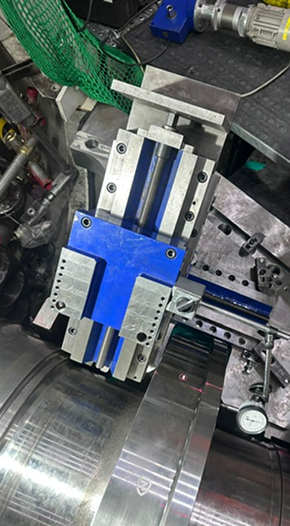

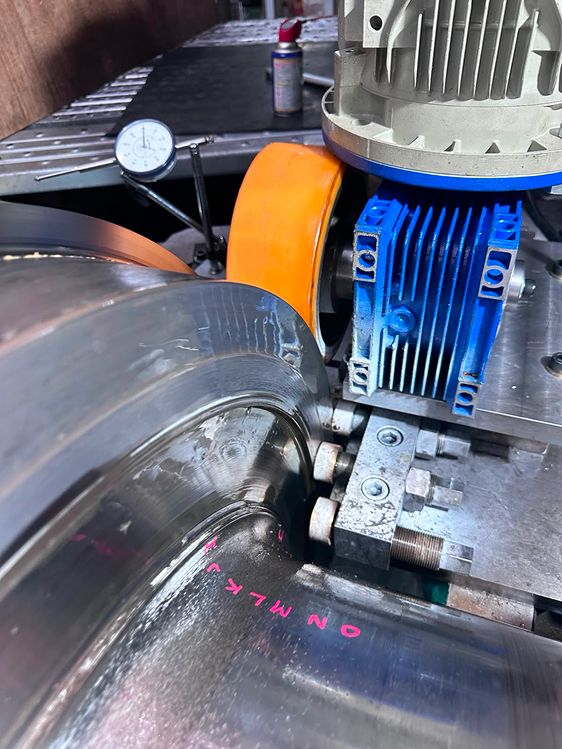

Setting the machine

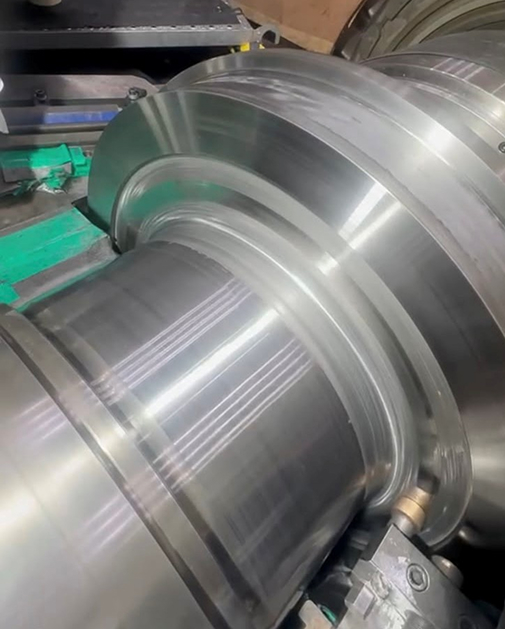

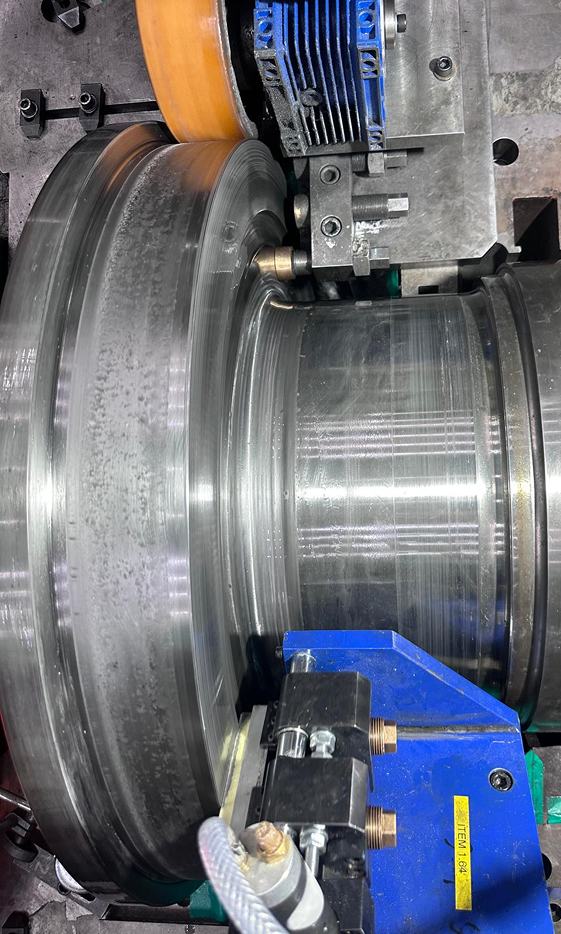

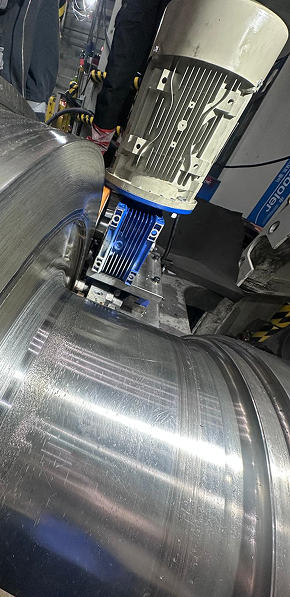

Re-machining and polishing

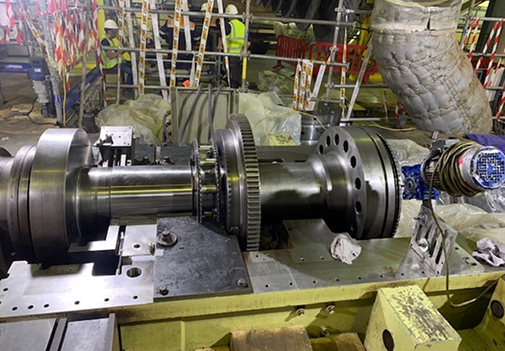

Final checks

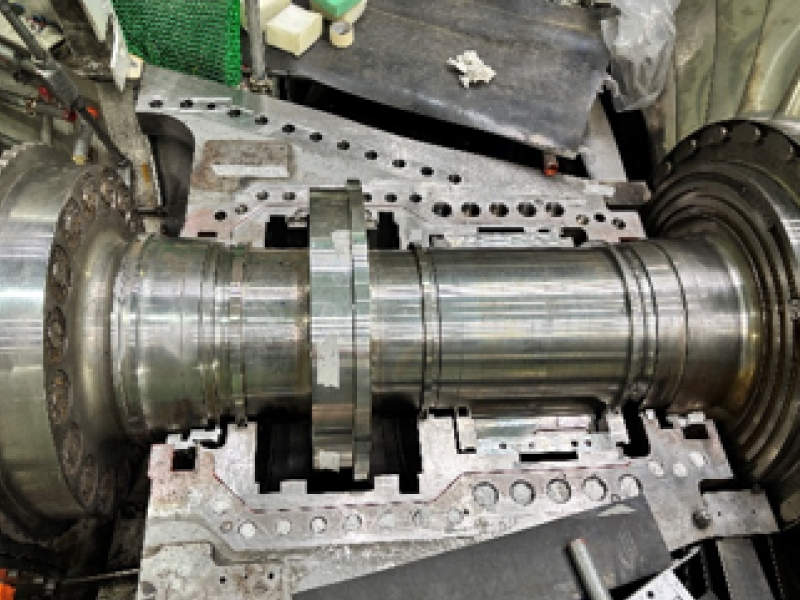

Job Complete

Metalock successfully re-machined and superfinished the thrust collar surface the rotor journal diameter and blended in the radius between the thrust face and the rotor journal.
